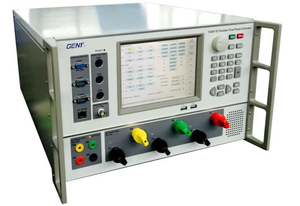

YC1893R series is developed by our company with international advanced level of high-grade equipment. The overall accuracy levels up to 0.01 grades. It Is designed for institute of metrology, laboratory, EPRI and EEM equipment plants. It is mainly used to establish primary standards or the standards meter for the working standard .
This is a Stationary Three-phase Energy Meter Test System described here can simultaneously test 1…3, three-phase or single-phase electric energy meters, in which are 2-wire, 3-wire and 4-wire meters for active and reactive energy with accuracy of 0.1%, 0.2%, 0.5%, 1.0%, 2.0%.
The Meter Test System has following features and functions
Supporting parallel communication port to test smart meters through RS232 / Ethernet
Calibrating terminals on the rack for test bench verification
1-phase energy meter for testing
3-phase energy meter for testing
Accuracy Testing of reference standard meter
Pre-warming
Accuracy test as per IEC
Creeping test
Starting current test
Repeatability of error test
Dial test
Influence quantity test related to accuracy tests (Voltage, Frequency, reverse phase sequence, voltage unbalance)
Influence of harmonic component in voltage and current circuit as per IEC
Tamper and Fraud Monitoring
Sub Harmonics as per IEC standards (IEC 62052-11 / 62053-21/22/23)
Odd Harmonics as per IEC standards
Main Technical Data
Overall accuracy: 0.01%
Meter position: 1~3
Voltage output: 3x 480 VAC
Power voltage: 3x 70 VA or customized
Current output: 3x 1mA - 120A
Power current: 3x 300VA or customized
استقرار: 30 جزء في المليون / ساعة
متناسق: 2nd - 41
